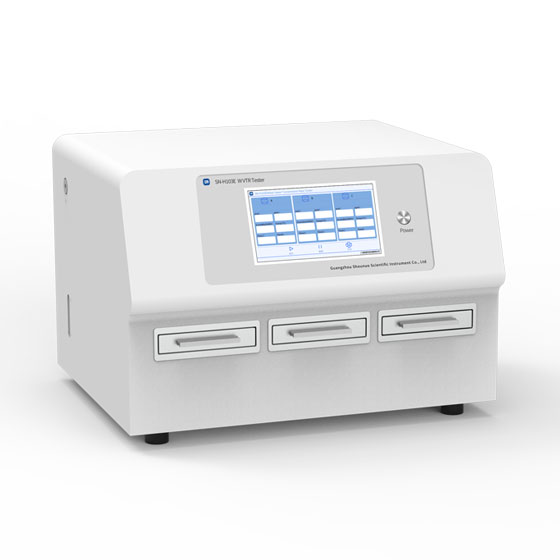

Water Vapor Transmission Rate Tester
Accurate Water Vapor Transmission Testing for Flexible Packaging
Water vapor transmission rate tester for accurate WVTR analysis of flexible packaging, pharmaceutical packaging, plastic films, and barrier materials.
- 1-Year Warranty
- Global Shipping
- Lifetime Technical Support
Technical Specifications – Water Vapor Transmission Rate Tester
Application Scope
Plastic films, composite films, aluminized films, PP/PVC/PVDC sheets, rubber plates, silicon wafers, etc.
Infrared Sensor
Features high accuracy, rapid response, wide dynamic range, and superior repeatability. Ultra-long service life with integrated auto-alarm protection.
Intelligent Operation
10.1" touchscreen with one-touch automated testing. Pneumatic clamping ensures effortless and rapid sample loading.
Stability & Data Integrity
Proprietary anti-virus OS and premium brand components. Supports custom wide-range temperature/humidity settings and comprehensive multi-curve analysis.
| Item | Parameter |
|---|---|
| Test Range | 0.02～50g/(㎡·24h) |
| Resolution | 0.0001g/(㎡·24h) |
| Temperature Range | 5℃～55℃ |
| Temp. Control Accuracy | ±0.5℃ |
| Humidity Range | 5%RH～90%RH（±2%RH）, 100%RH |
| Humidity Control Accuracy | ±1%RH |
| Gas Source Pressure | ≥0.4MPa |
| Nitrogen Pressure | 0.1 MPa |
| Test Area | Approx. 50.26cm²(Optional） |
Models

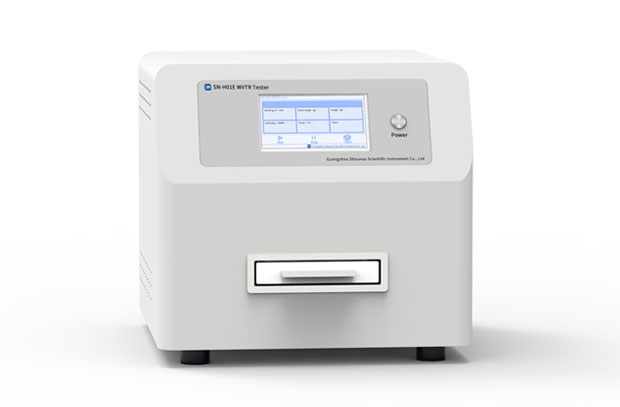

SN-H01E WVTR Tester
- Single-Cell (Single-Chamber) Model, ideal for limited budgets or occasional testing. This model is a top choice, offering the same testing precision and standard compliance as our triple-cell models.

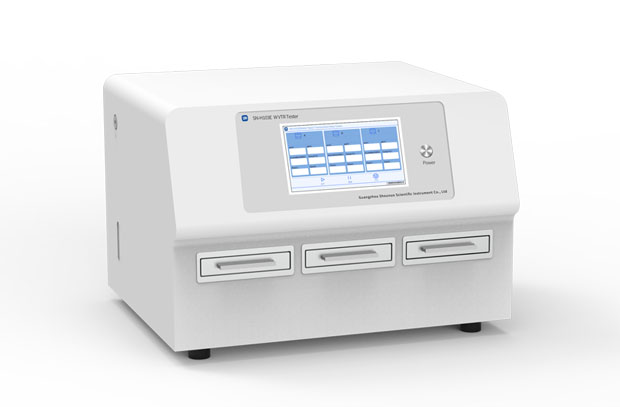

SN-H103E WVTR Tester
- Triple-Cell (Triple-Chamber) Model, features three chambers operating in parallel under identical conditions. Test three specimens simultaneously to significantly shorten your overall testing cycle.
Global Standards Compliance
Our WVTR analyzers fulfill global regulatory mandates for food packaging, pharmaceuticals, and medical devices.
Why Choose Us?
Trusted by Labs and Manufacturers in 40+ Countries
- Your One-Stop Testing Solution for Flexible Packaging
- Specializing in high-barrier analysis, mechanical properties, seal integrity, and heat-seal strength.
- CE Certified and ASTM Compliant.
- Total Peace of Mind: Guaranteed repair/replacement and lifetime technical support.
"The measurement stability is outstanding, with deviations within 0.01 g/m²·day. Backed by excellent technical support and rapid delivery, this is a top-tier choice for high-barrier QC."
In-house R&D
With an experienced R&D team, our self-developed products allow for faster iteration and more flexible customization.
Factory-Direct Source
We manufacture entire machines in-house. By eliminating middlemen, we offer lower costs, faster delivery, and deeply customized testing solutions.
Quality Assurance
From rigorous technical processes to pre-delivery inspections, we control every detail to ensure quality that stands the test of time.
Efficient Service
Our professional after-sales team is available 24/7, providing free operational training, software upgrades, and more.
Request Technical Datasheet & Quote
Our team typically responds within 4 hours.
