Intended Use：

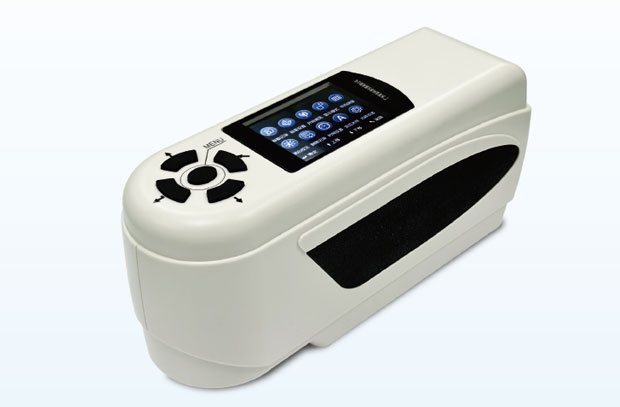

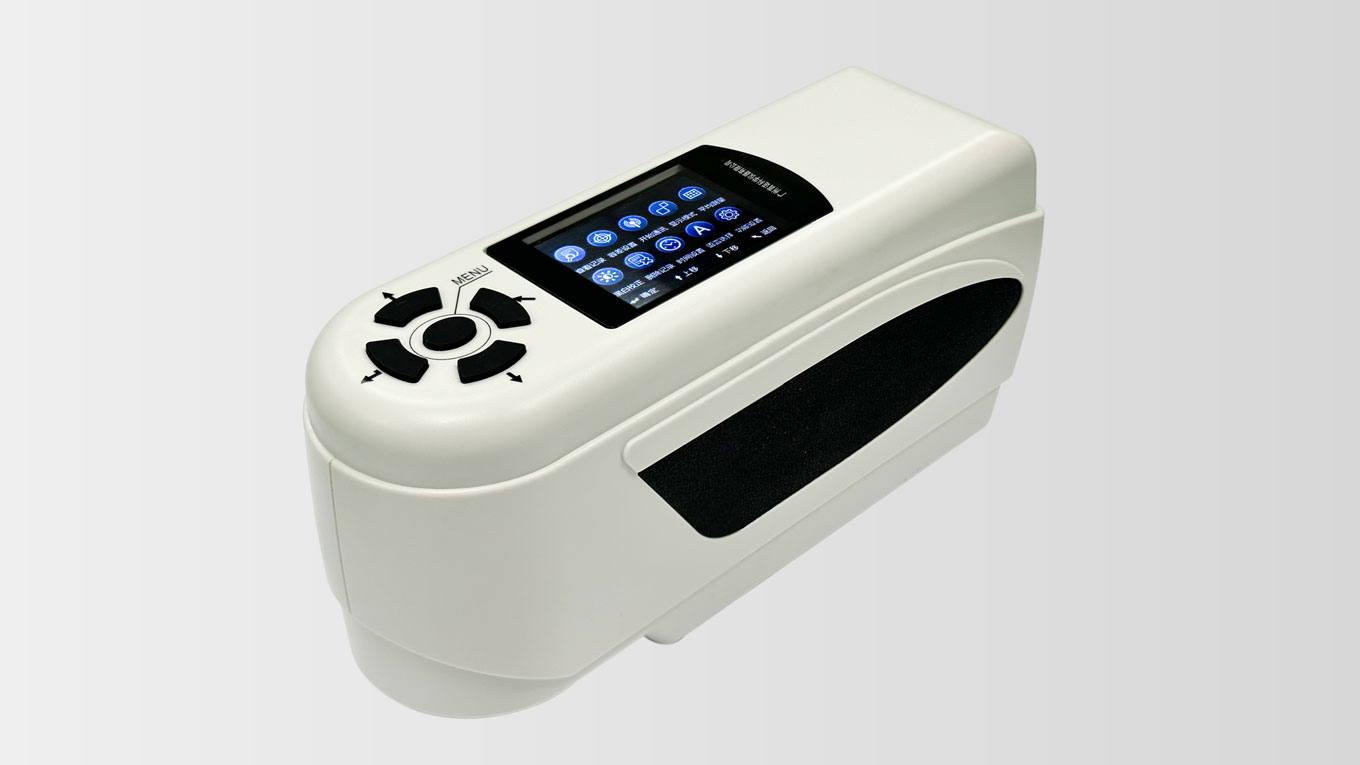

Featuring high stability and precise measurement of density and colorimetric data, this instrument holds a leading position in the field of portable spectrodensitometers. Equipped with various measurement apertures, it is widely utilized in ink printing, papermaking, traffic signage, textile dyeing, research institutes, quality inspection agencies, and laboratory environments.
Operating Principle：
Positioning is achieved via a light spot at the measurement aperture. To align: enter the standard or sample measurement interface, then press and hold the "Measure" button to project the light spot. Adjust the device position by matching the spot with the target area of the sample to ensure precise targeting.
Product Features：
- Illumination Positioning: Features proprietary light-spot positioning technology for fast and convenient alignment, emphasizing an ergonomic and user-centric design.
- Auto-Calibration: No manual black/white calibration is required upon startup, significantly enhancing efficiency and convenience for high-precision color difference measurements.
- High Stability: Standard deviation is ΔE*ab＜0.08 (Average of 30 measurements on a standard white plate).
- Standard Illuminant: Utilizes the internationally recognized D65 standard illuminant.
- Multiple Color Spaces: Supports various color spaces, allowing users to select the display mode that best suits their specific needs.
Standards：
Compliant with CIE (International Commission on Illumination) standards.
Application Fields：
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing
Technical Parameters：
Color Spaces
CIEL*a*b*C*h* CIEL*a*b* CIEXYZ
Color Difference Formula
ΔE*ab ΔL*a*b ΔE*C*h
Display Mode
CIEL*a*b*C*h* CIEL*a*b*
Geometry
8°/d (CIE recommended)
Light Source Device
LED blue light excitation
Sensor
Silicon photodiode array
Measuring Conditions
CIE 10° Standard Observer
Measuring Range
L: 10-100
Inter-instrument Agreement
≤0.40ΔE＊ab
Repeatability
≤0.07ΔE*ab (Average of 30 measurements on white plate)
Battery Life
Up to 3,000 measurements per charge
Lamp Life
5 years / More than 1.6 million measurements
Display
2.8-inch TFT Color (16:9)
Operating Temp
-10~40°C,0~85%RH(Non-condensing)
Storage Temp
-20~50°C,0~85%RH (Non-condensing)
Power Supply
Rechargeable Li-ion battery (3.7V @ 3200mAh)
Charging Time
Approx. 8 hours (to 100%)
Storage
100standards 20000samples
Standard Configuration：
Power Adapter, Lithium Battery, CD-ROM (Software), Data Cable, White Calibration Cap, 8mm Aperture.
Optional Accessories：
Micro Thermal Printer
